The Double Head Wood CNC Router Machine by Kedar Mechatronics is designed for high-efficiency woodworking production. With two independent spindles, it allows simultaneous machining on two workpieces, doubling productivity and reducing operational time.
Key Features:
Dual Spindle Configuration for parallel processing
Heavy-Duty Frame for vibration-free operation
Large Working Area suitable for big and small projects
Supports 3D Carving on both flat and contoured surfaces
Easy-to-use interface compatible with popular CAD/CAM software
Applications:

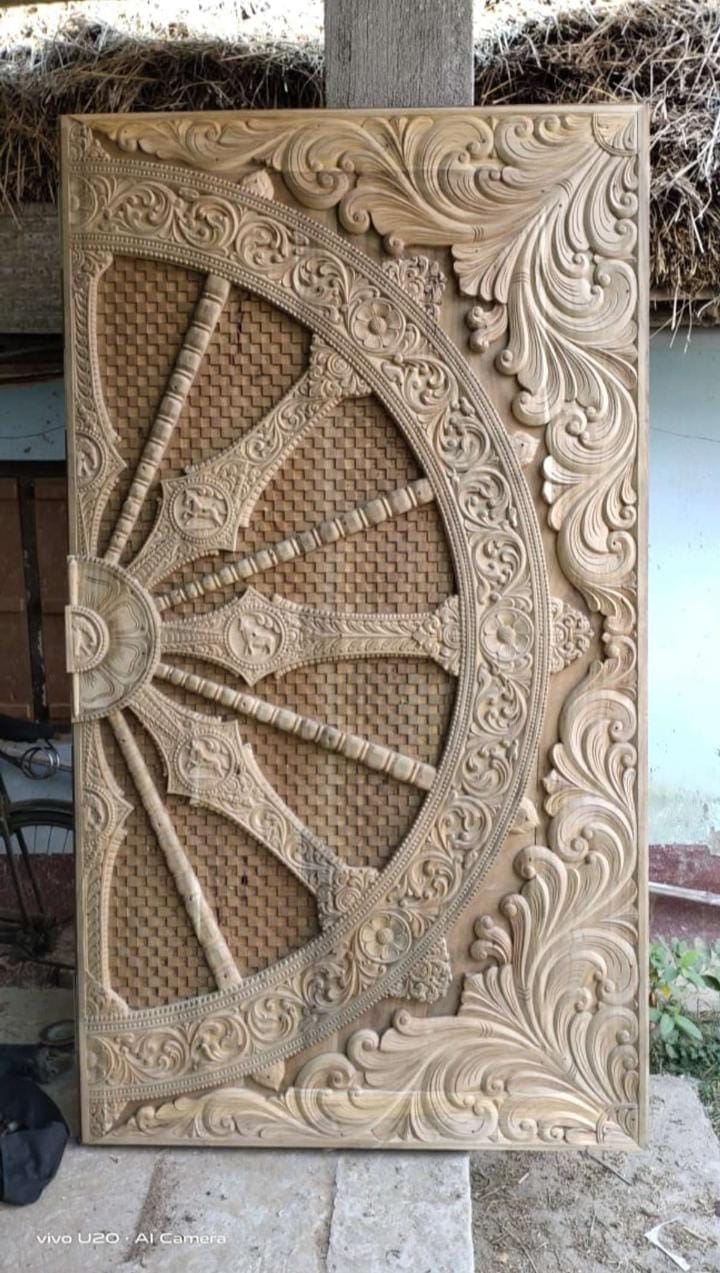

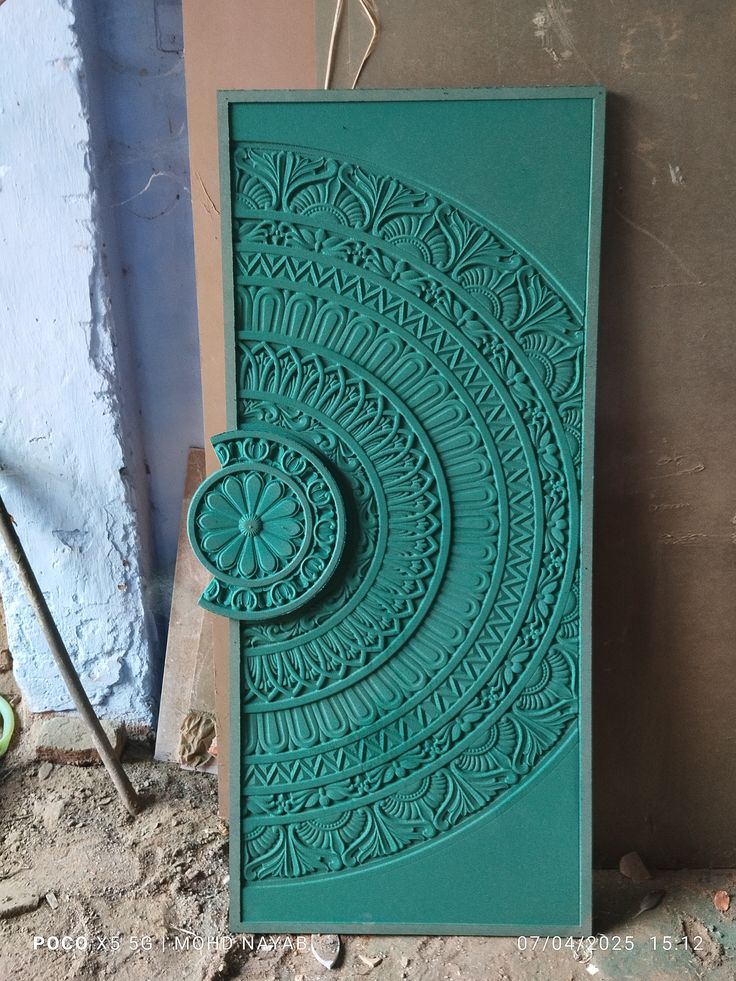

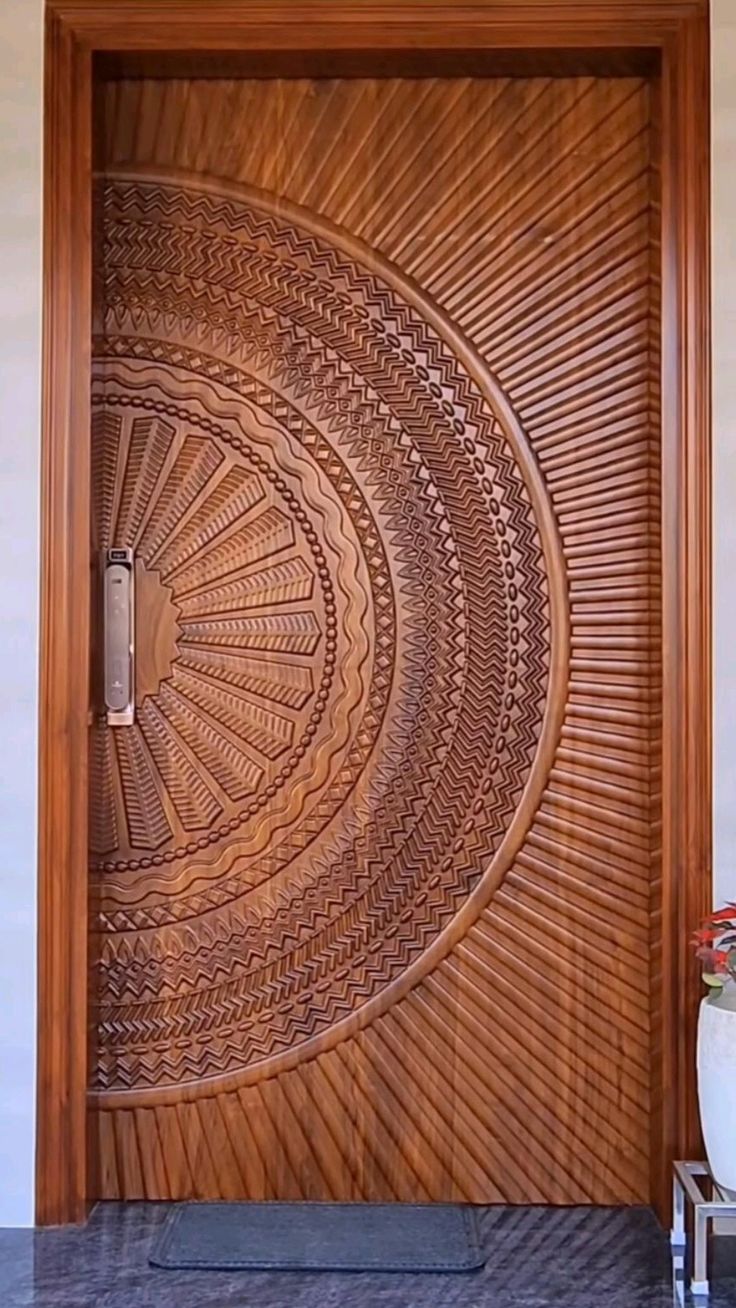

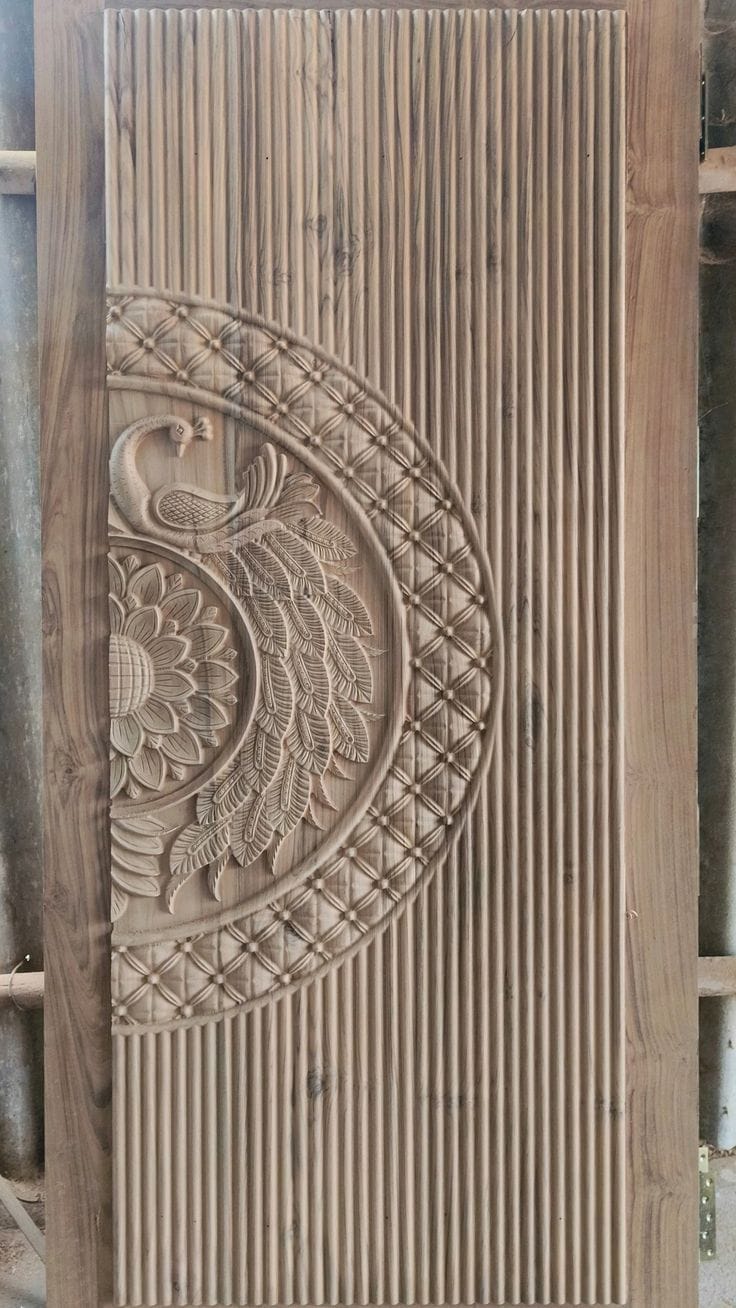

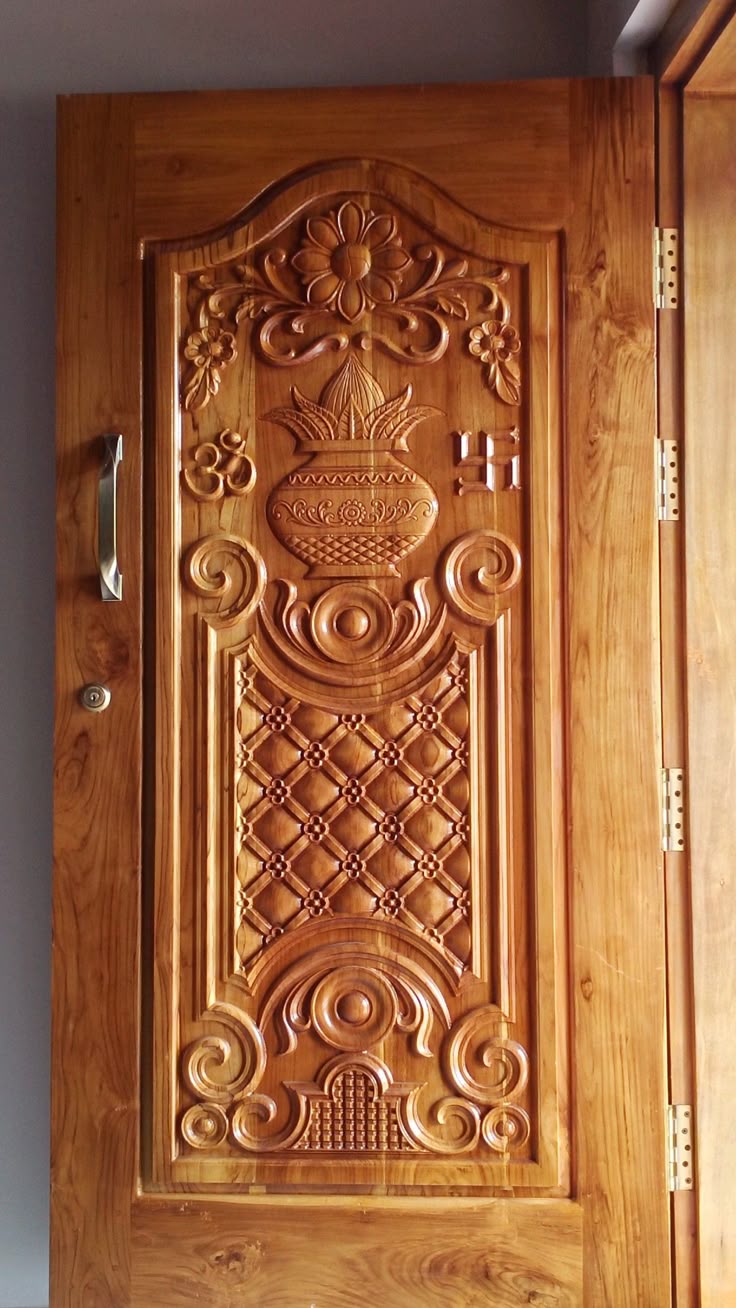

Mass production of cabinet doors and panels

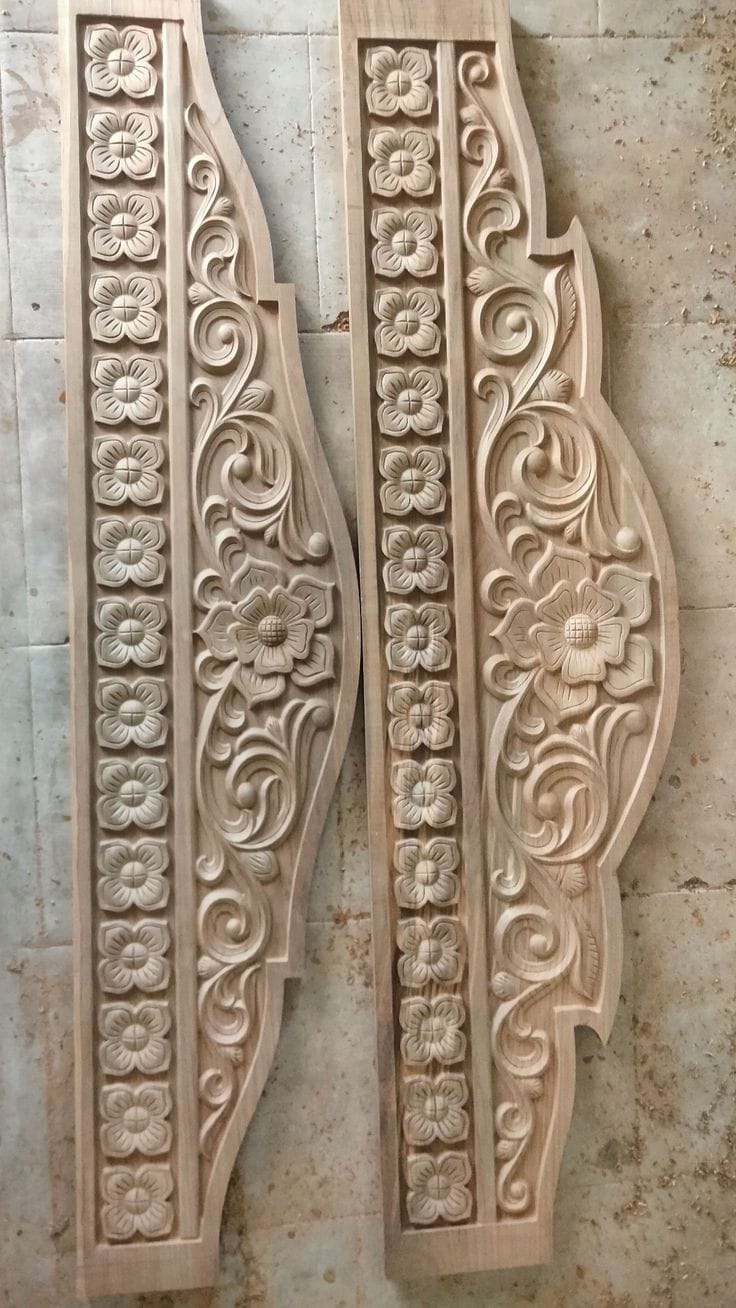

Furniture parts manufacturing
Wooden signboards and engravings

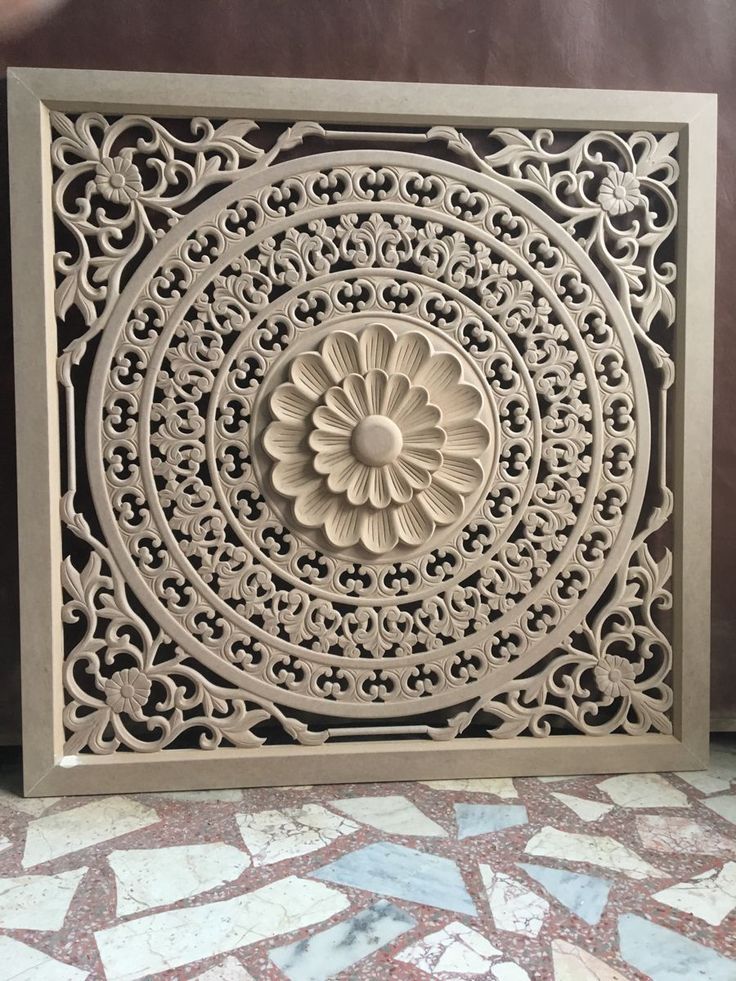

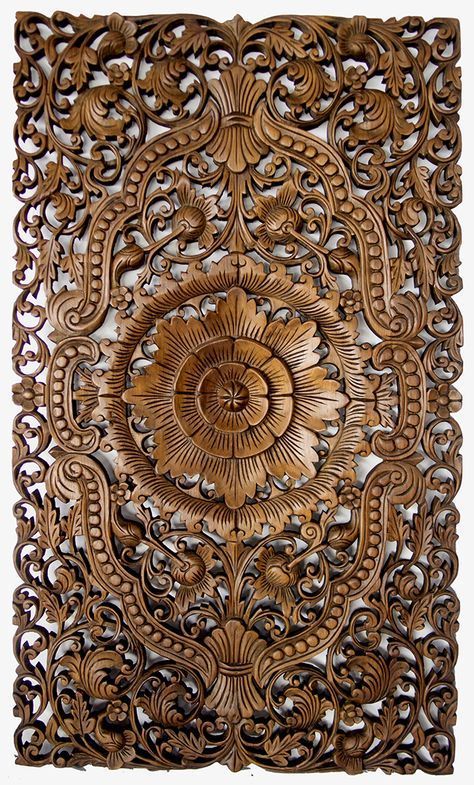

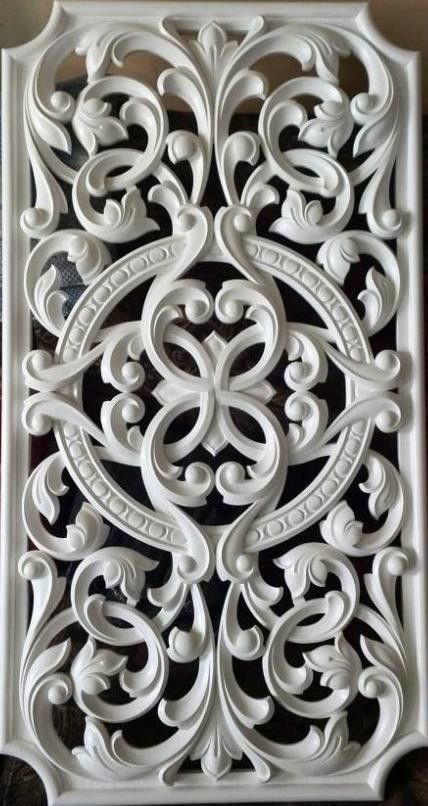

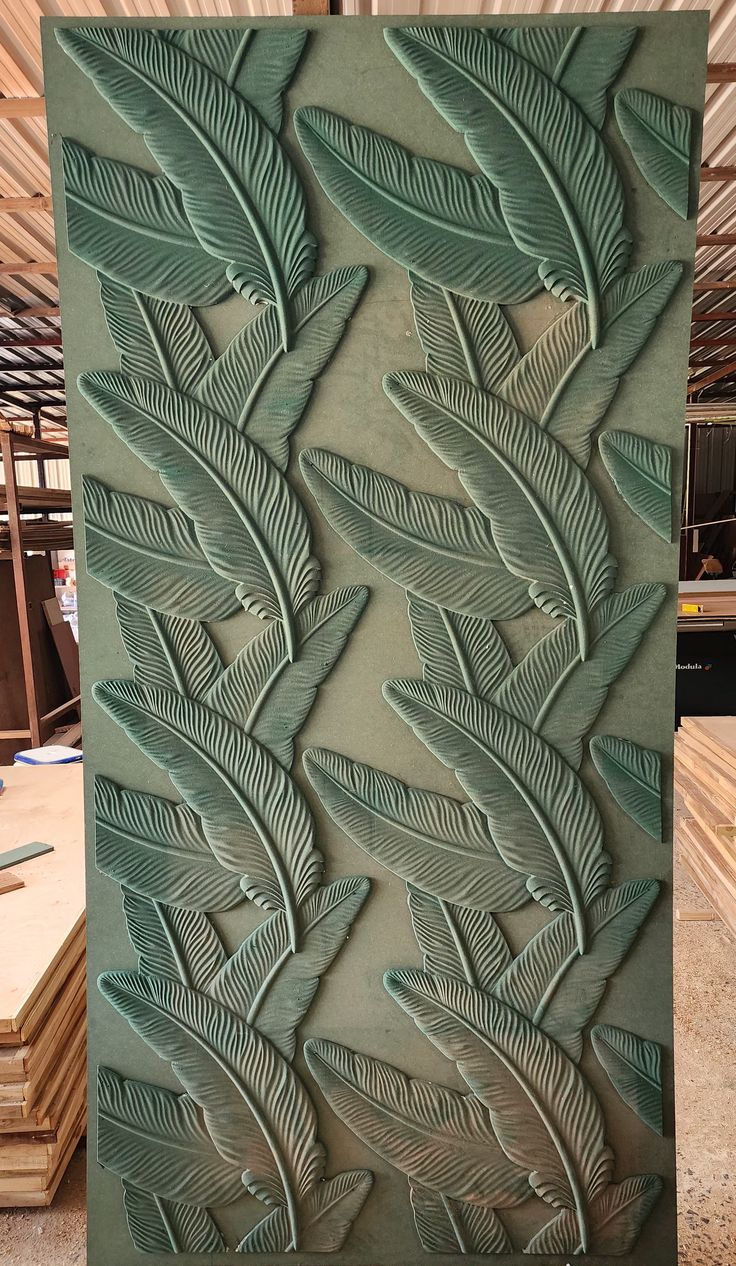

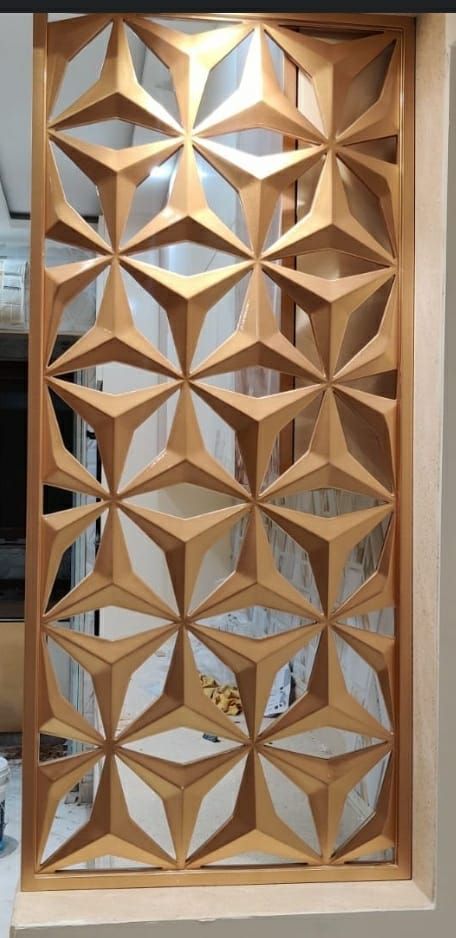

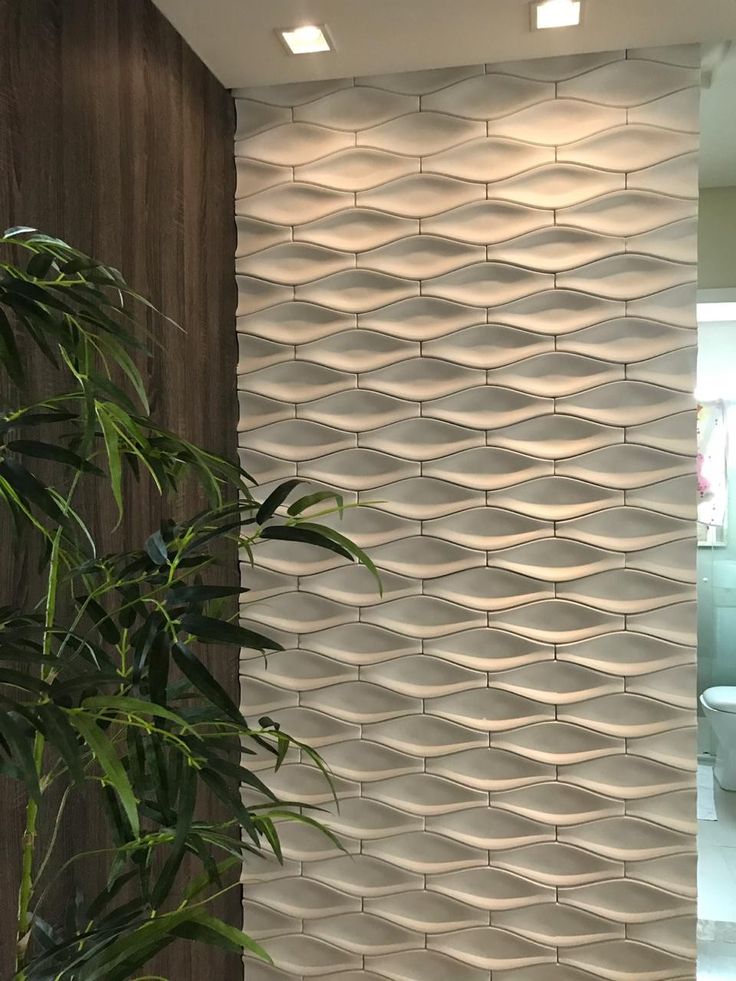

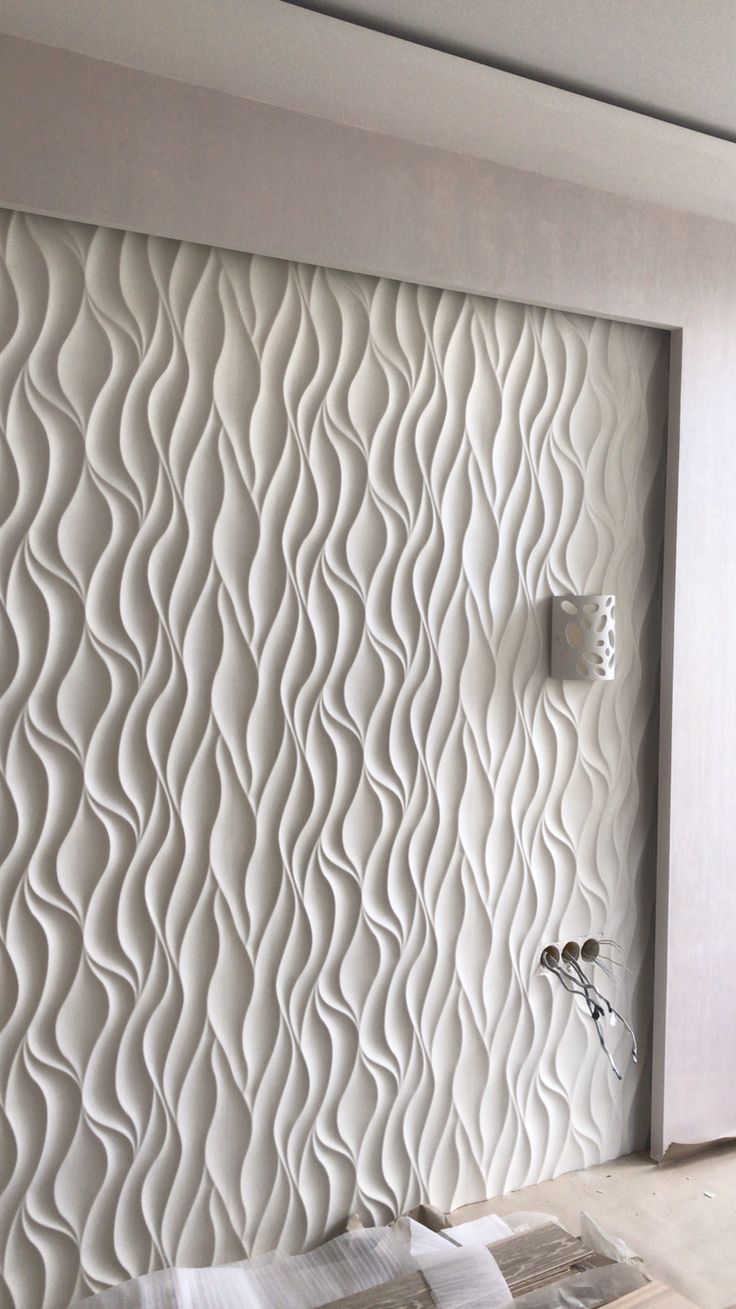

Decorative wall panel production

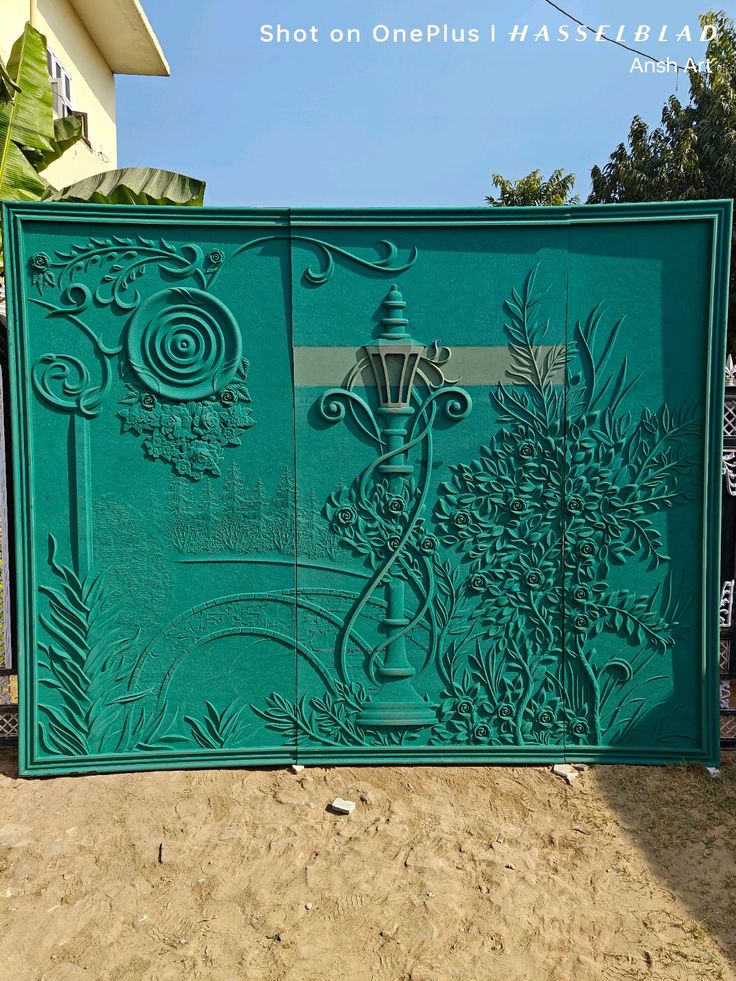

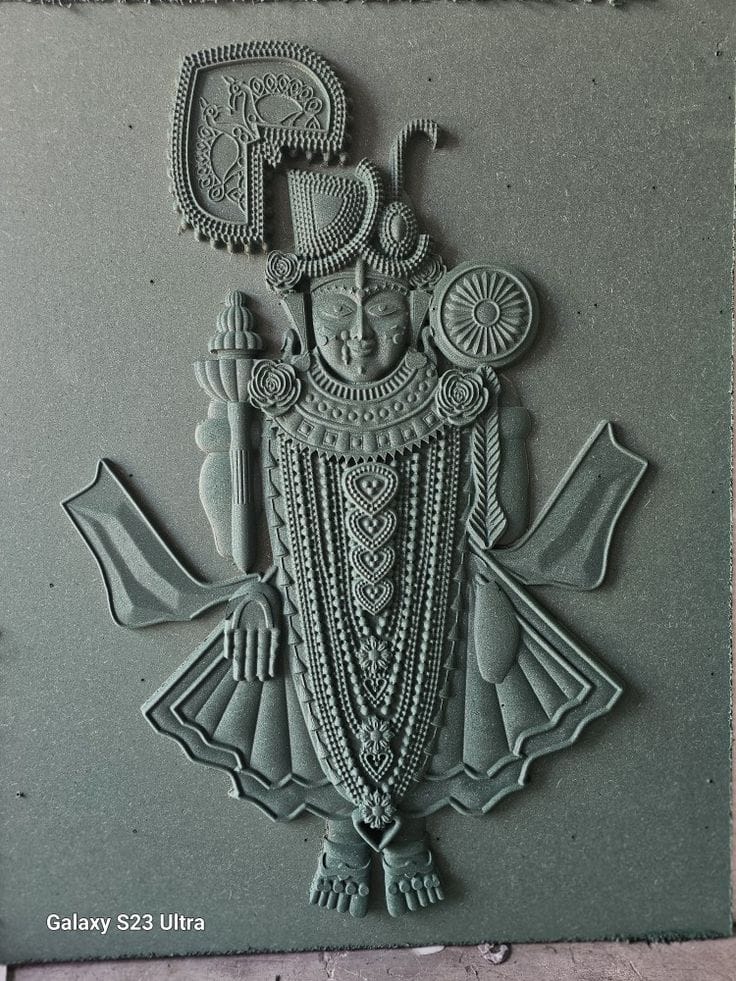

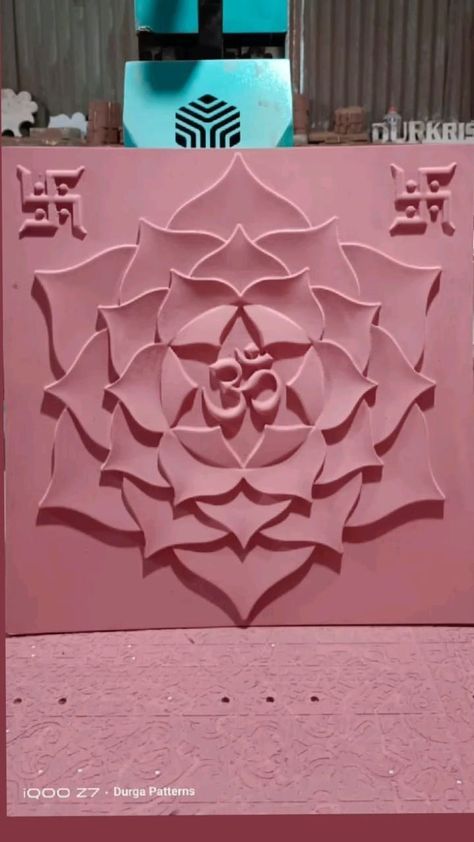

Bulk 3D relief carving projects
| Model | KDH-1825 |
| Working Area | 1800 X 2500 X 300mm |
| Drive Motor | Fully Servo With Planetary Gear Box |
| Drive Motor Brand | Lead Shine / Aeromotion / Fuji |
| Operating System | DSP Hand Controller/(NK-105/WEIHONG) |
| Spindle Spindel | 4.5kw/5.5kw/6.5kw Air Cooled/Water Coold Spindle |
| Maximum Spindle Speed | 18000/24000 |
| Command Code | G Code |
| X & Y Transmission | LM Guide Rail 25mm |
| Z Transmission Ball Screw | 25mm Ball Screw |
| Rack and Pinion | Helical and Harder Rack, Pinion - Soft |
| Working Voltage | AC 380-415V/3hp, 50Hz |
