The Single Head Wood CNC Router Machine with Rotary Attachment by Kedar Mechatronics is ideal for versatile woodworking applications, including cylindrical and 3D carving. The integrated rotary device allows seamless processing of columns, balusters, and cylindrical components along with flat panel work.
Key Features:
High-Speed Spindle for clean and precise cutting
Sturdy Frame for stable operation
Rotary Attachment for 4-axis carving of cylindrical pieces
Supports 3D Carving on flat and contoured surfaces
User-Friendly Controls compatible with major CAD/CAM software
Applications:

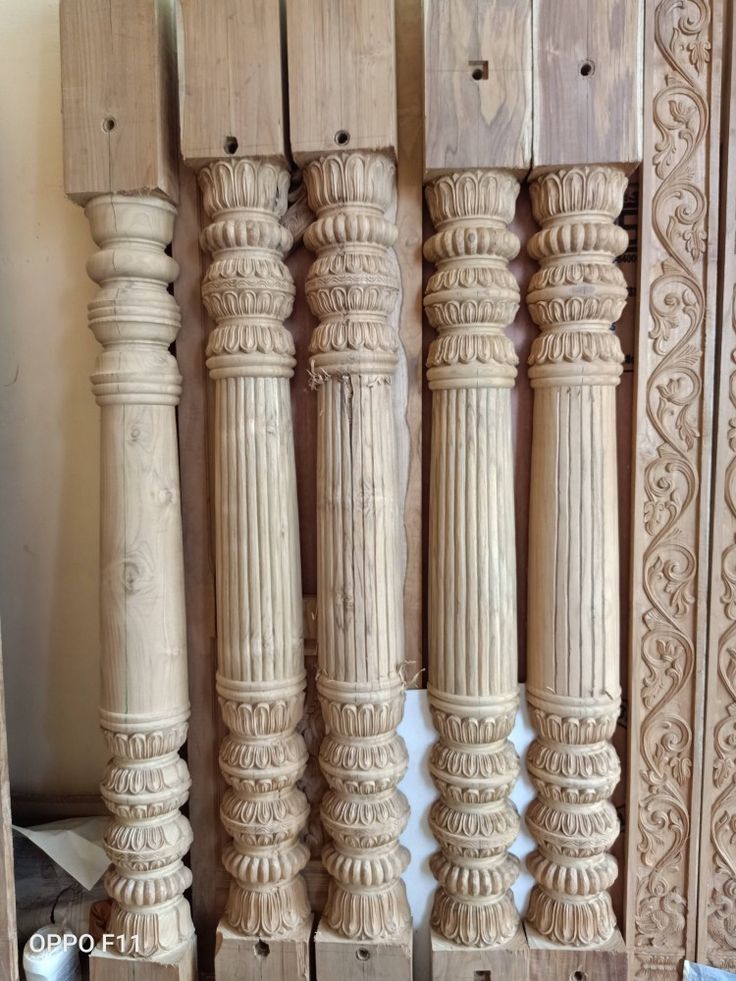

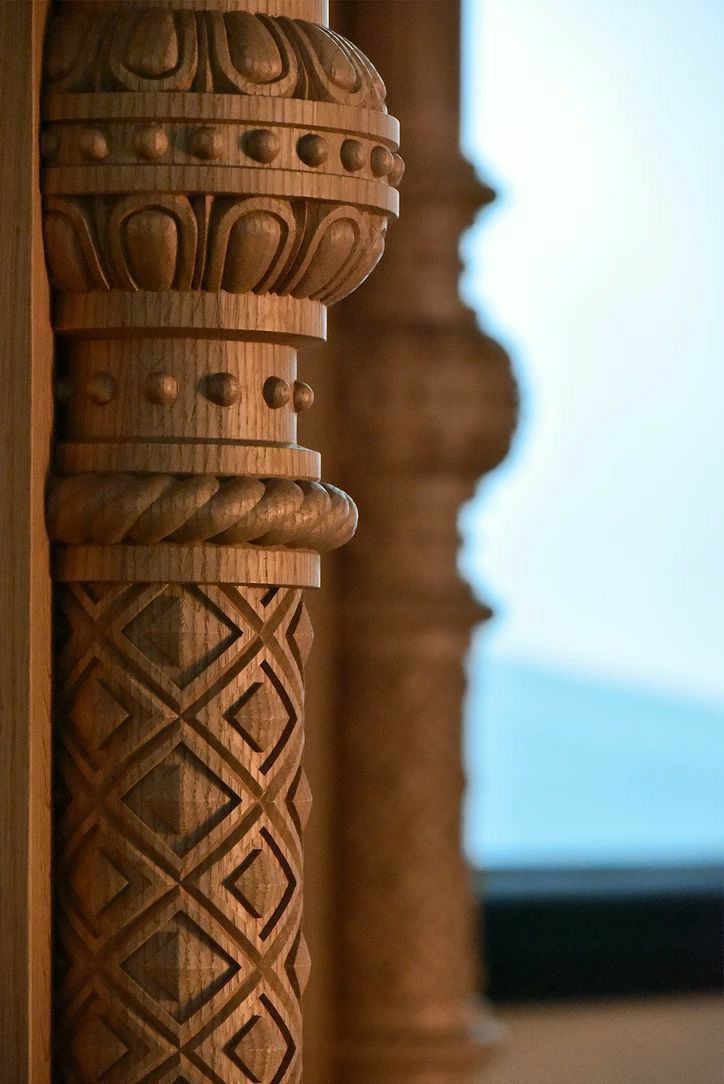

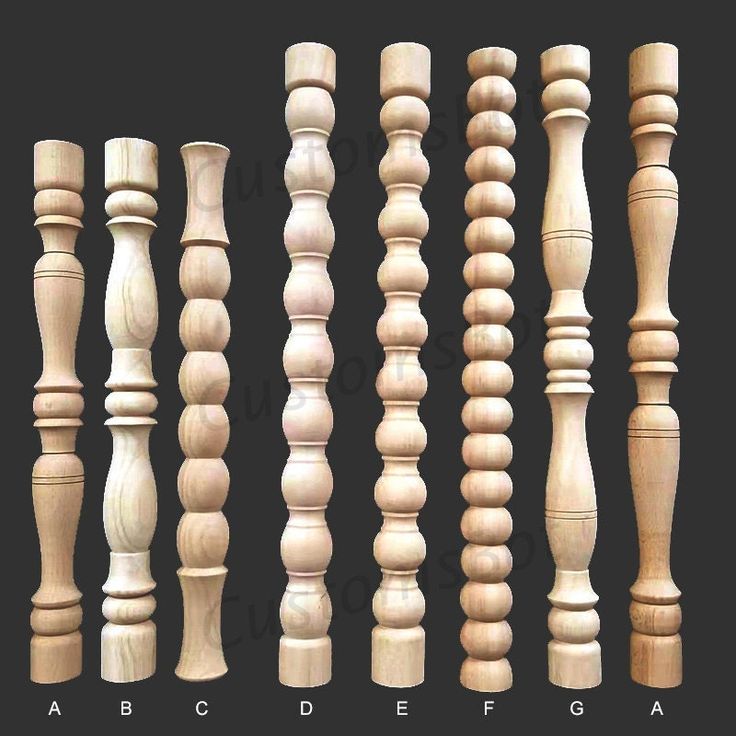

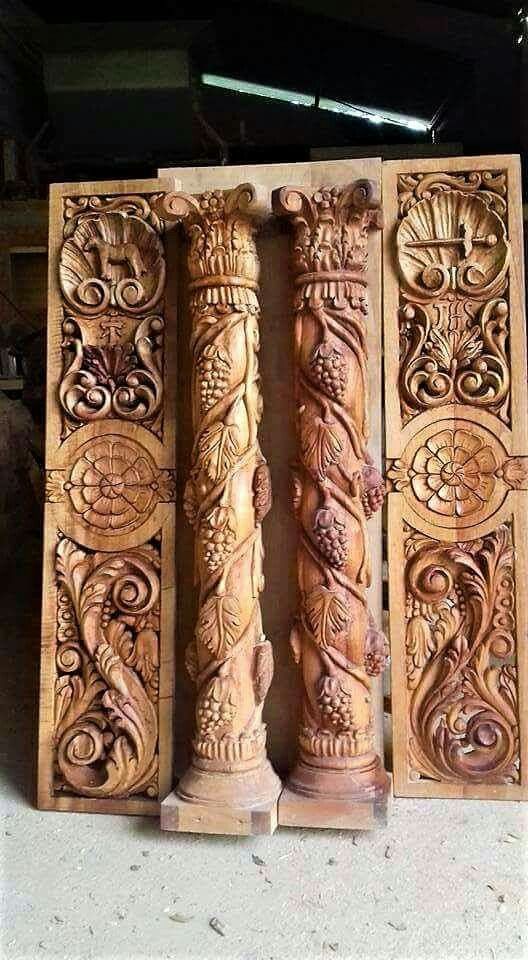

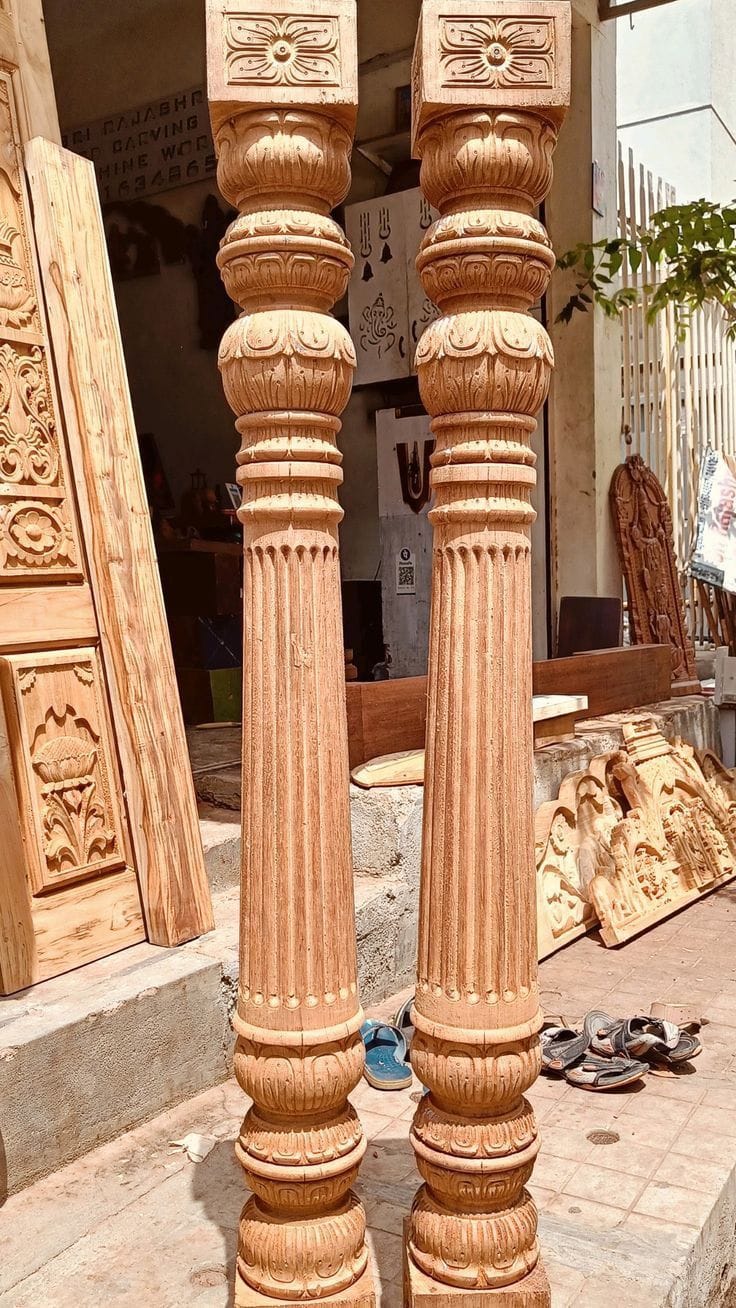

Staircase balusters and columns

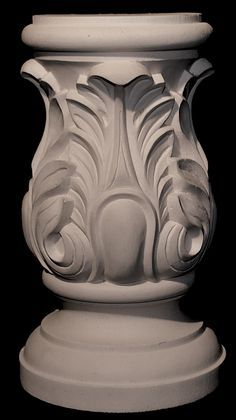

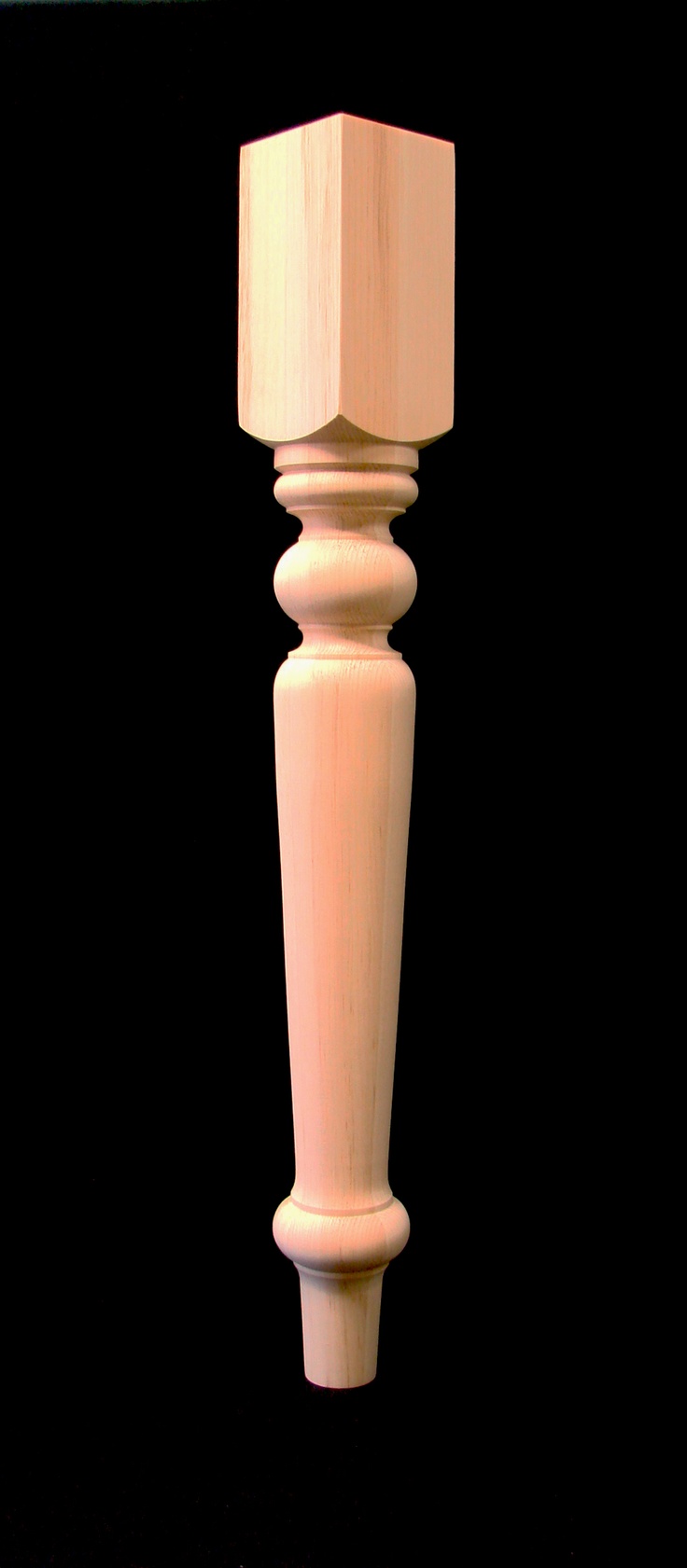

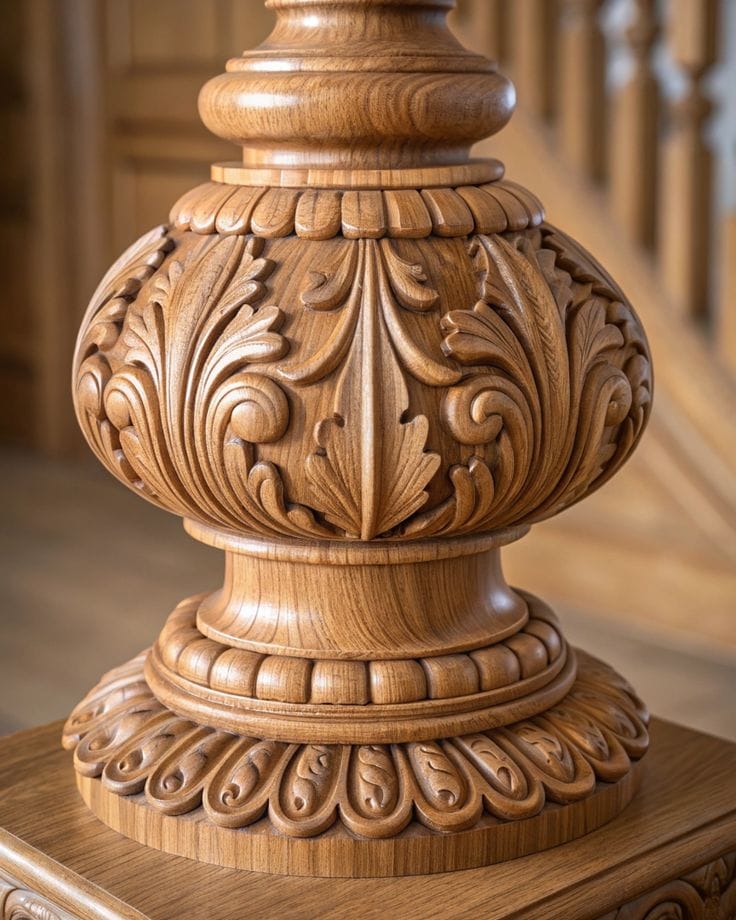

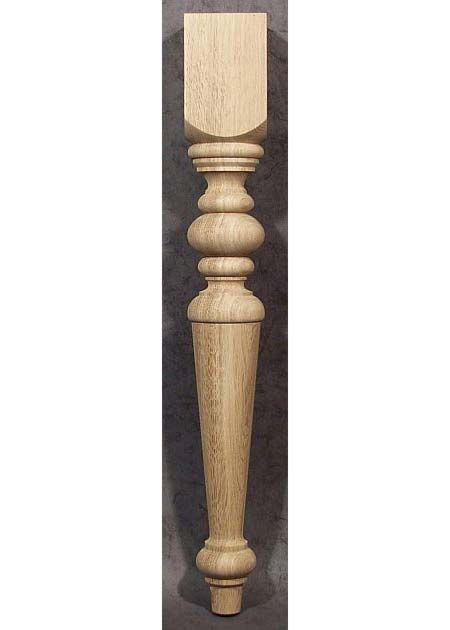

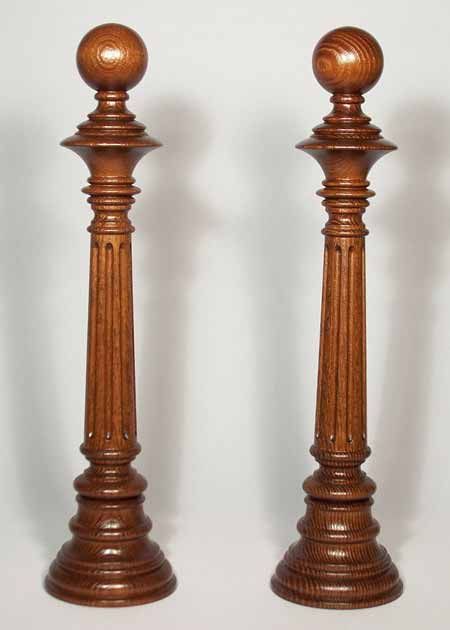

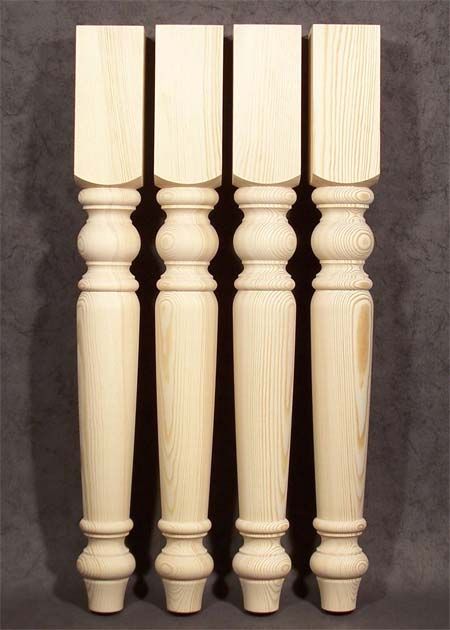

Furniture legs and decorative posts

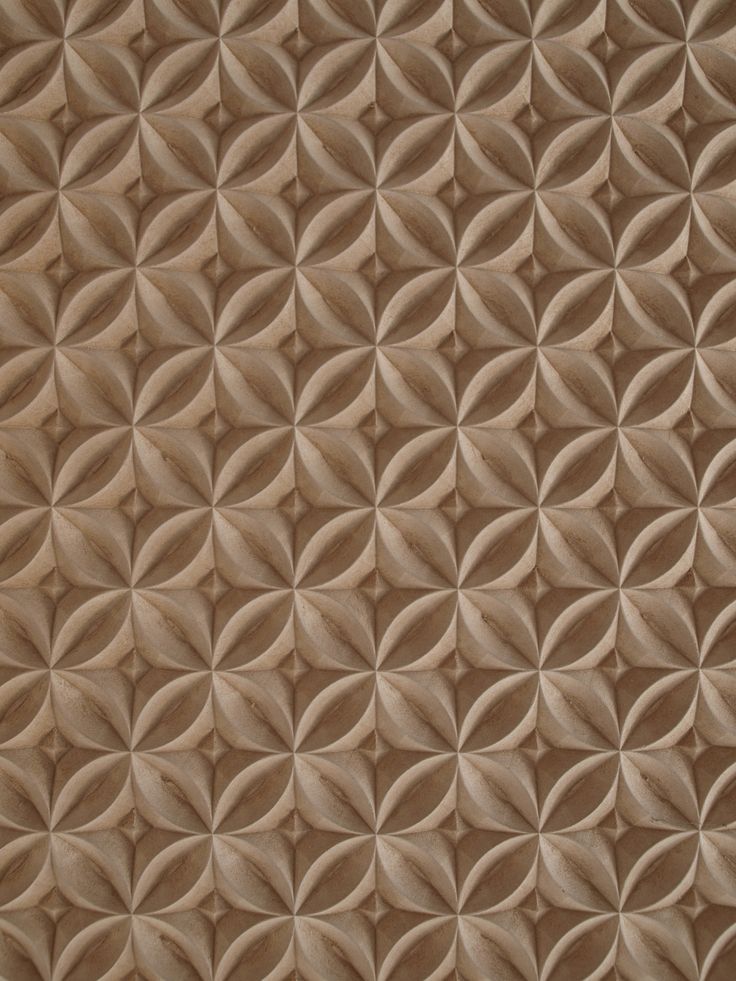

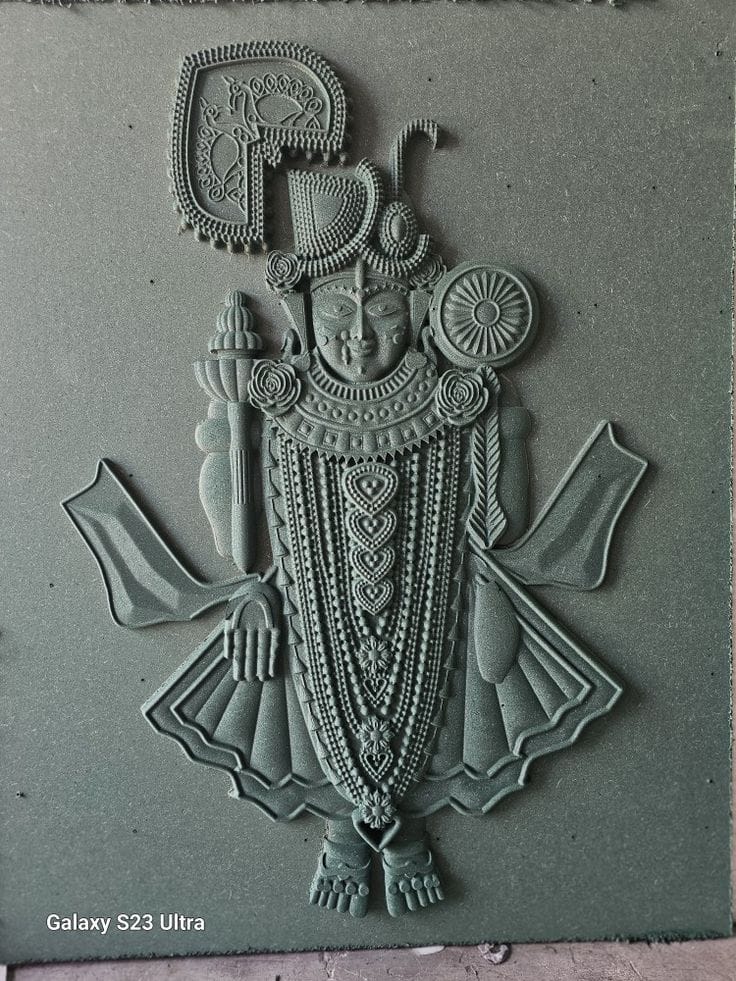

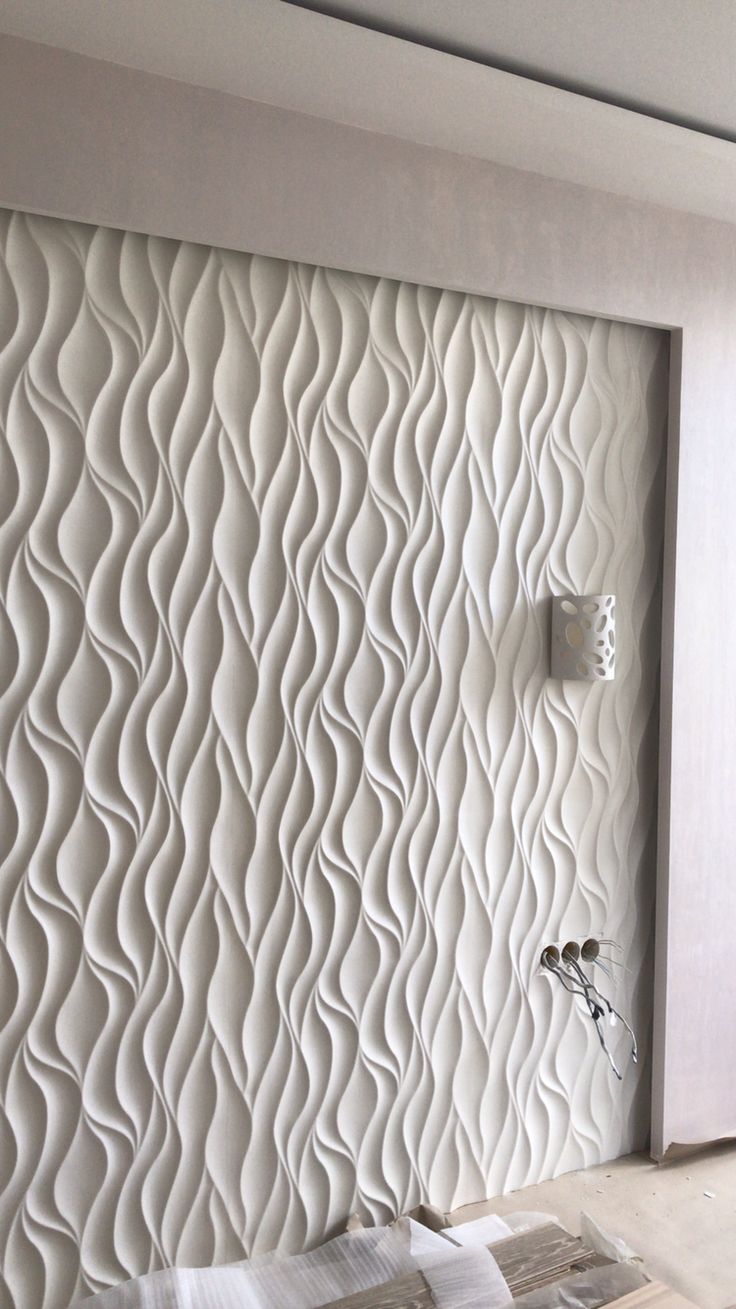

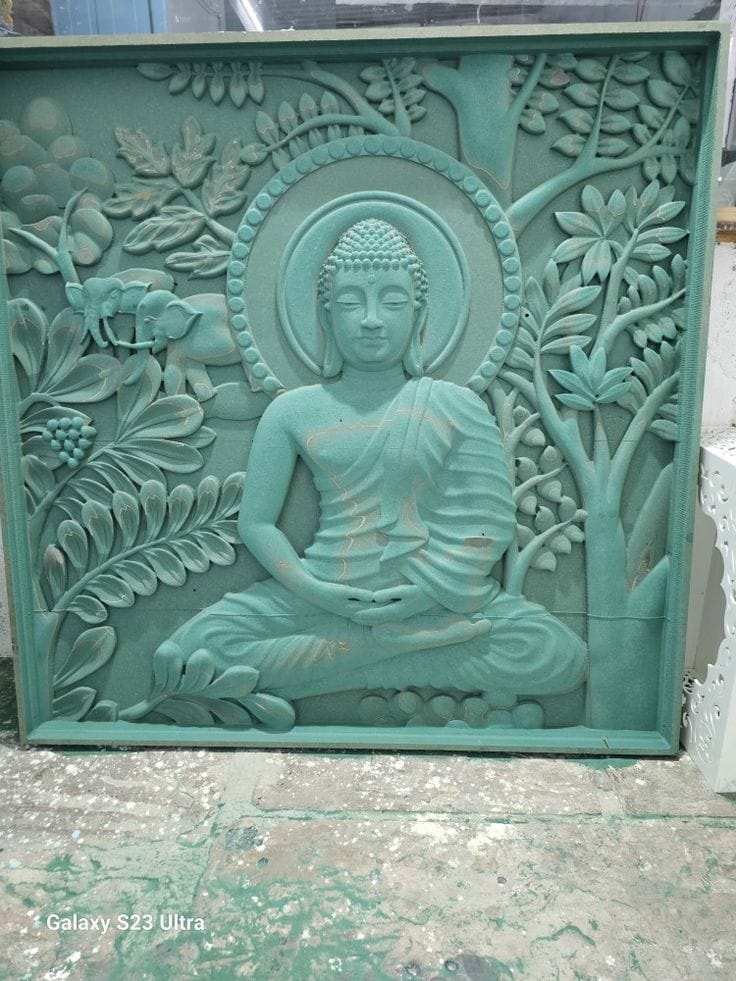

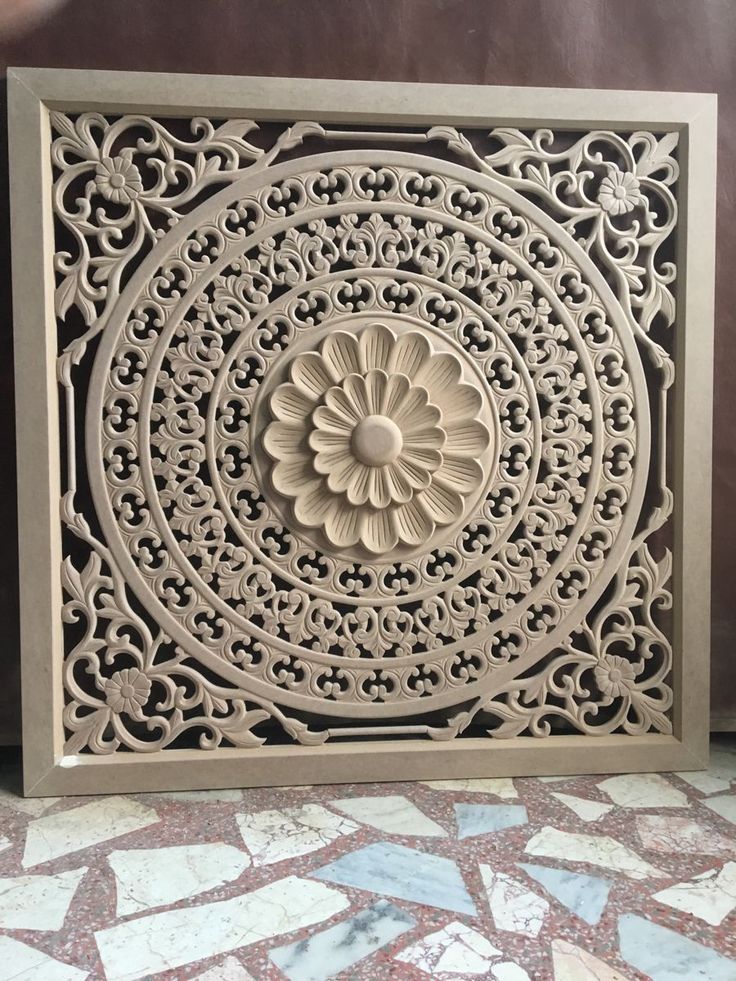

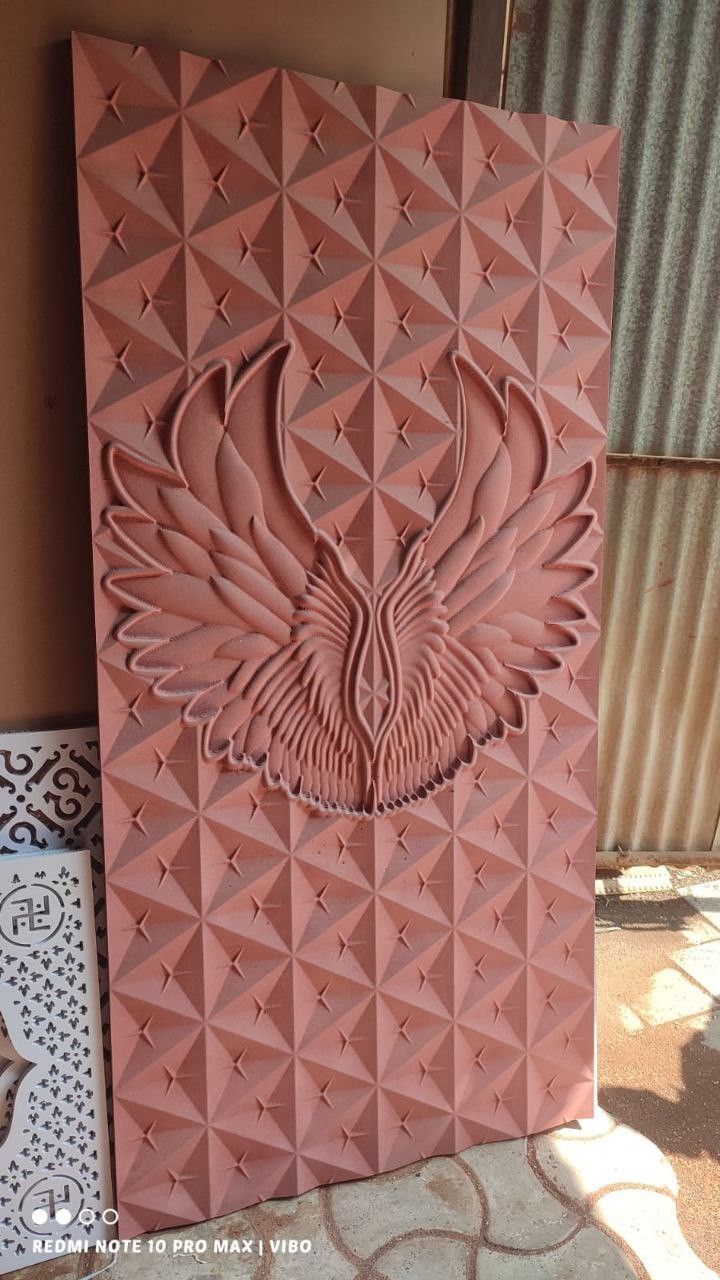

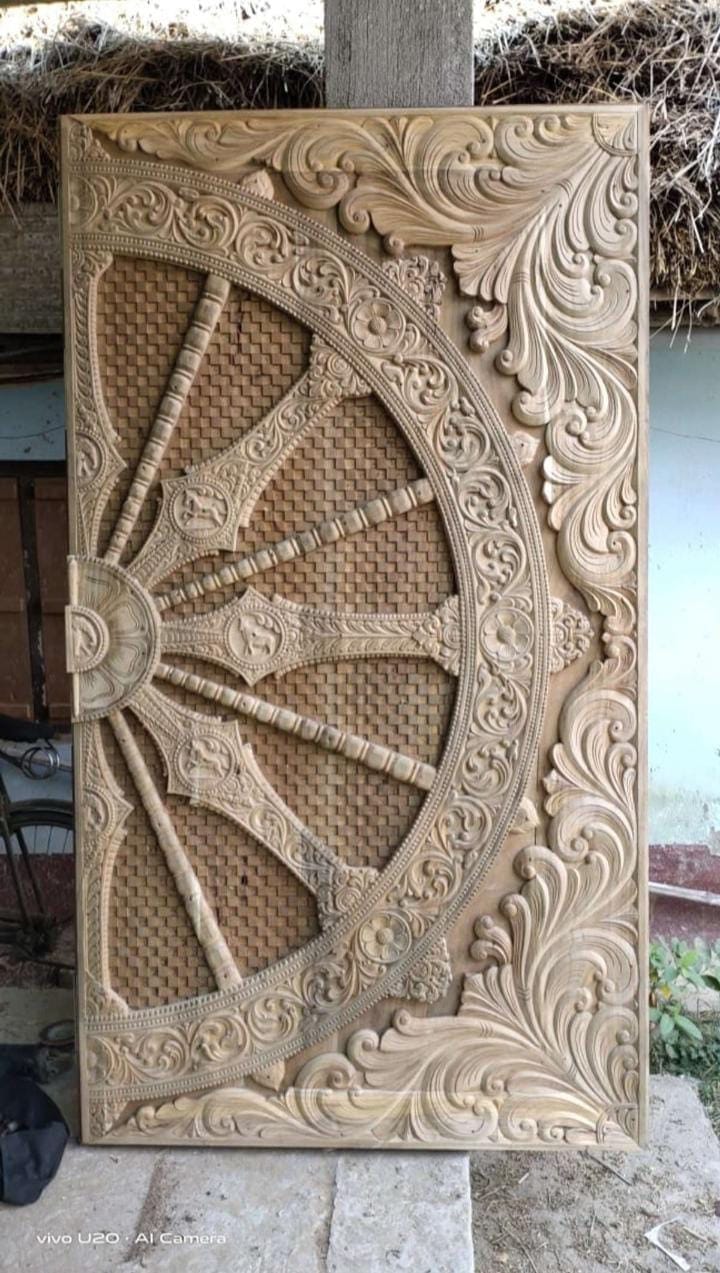

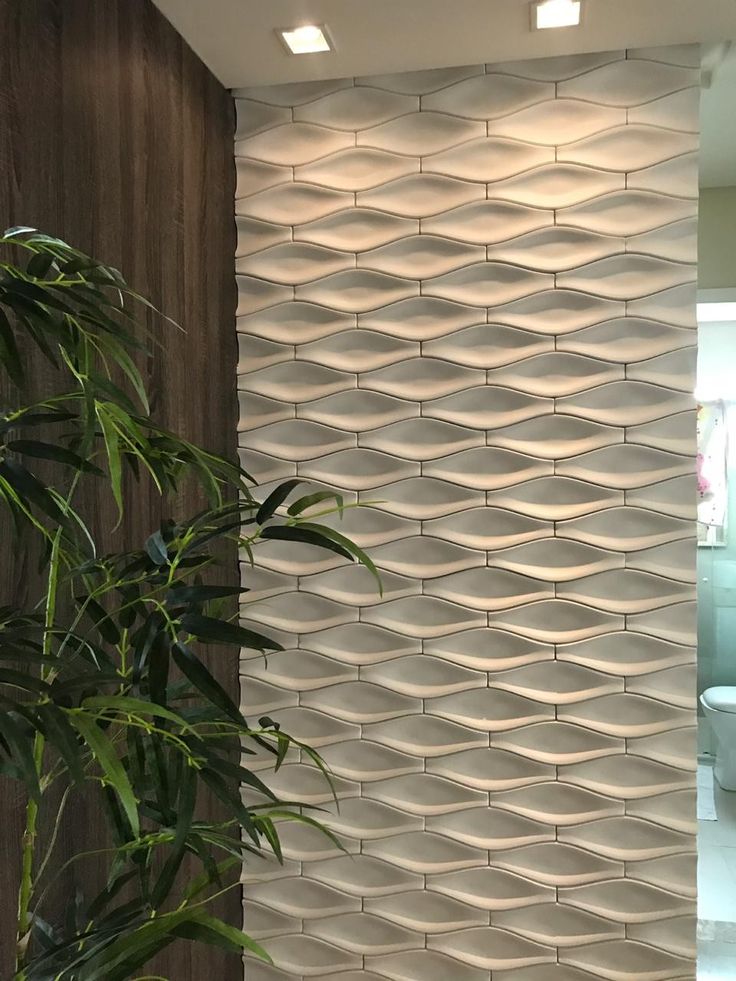

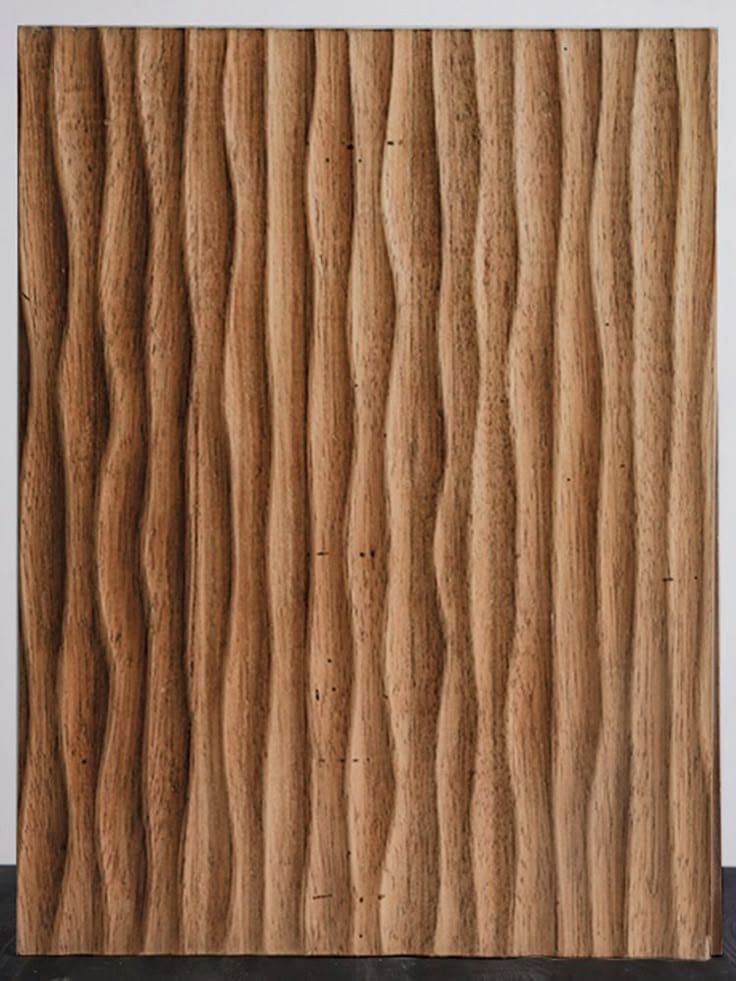

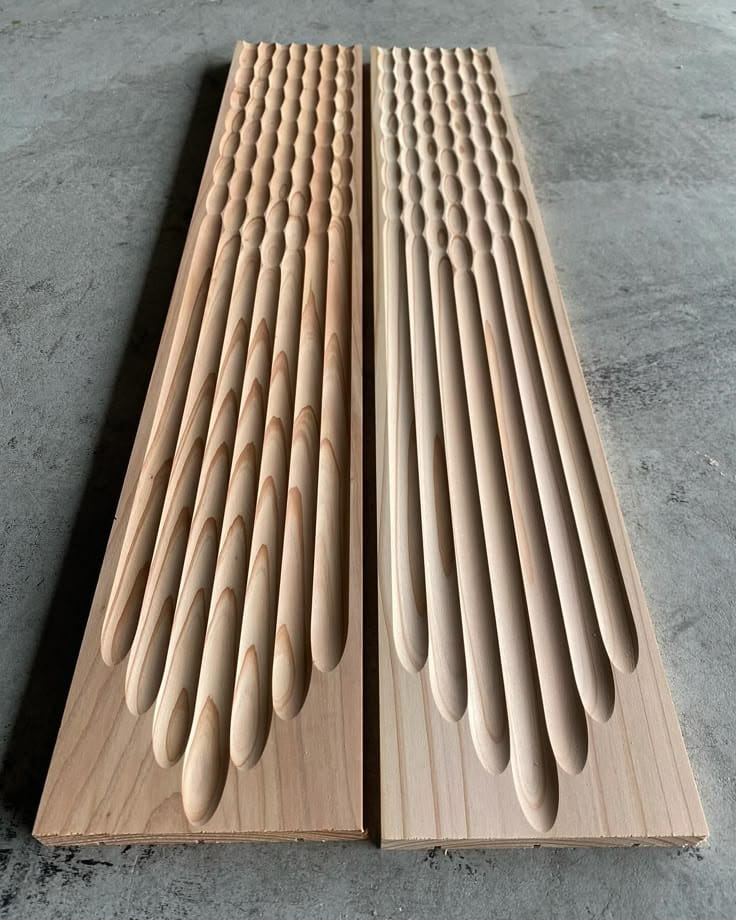

3D relief panels and wood art
Custom cylindrical engraving and carving
General woodworking and furniture manufacturing
| Model | K3-1325 |
| Working Area | 1300 X 2500 X 300mm Size can be Modified as your Required |
| Drive Motor | Fully Servo With Planetary Gear Box |
| Drive Motor Brand | Lead Shine / Aeromotion / Fuji |
| Rotery Dia & Length | 10 Inch Diameter & 6-7 Feet Length |
| Operating System | NK-105G3 4 Axis Controlar / WEIHONG |
| Spindle Spindel | 5.5kw / 6.5kw Air Cooled / Water Coold Spindle |
| Maximum Spindle Speed | 24000 |
| Command Code | G Code |
| X & Y Transmission | LM Guide Rail 25mm |
| Z Transmission Ball Screw | 25mm Ball Screw |
| Rack and Pinion | Helical and Harder Rack, Pinion - Soft |
| Working Voltage | AC 380-415V/3hp, 50Hz |
